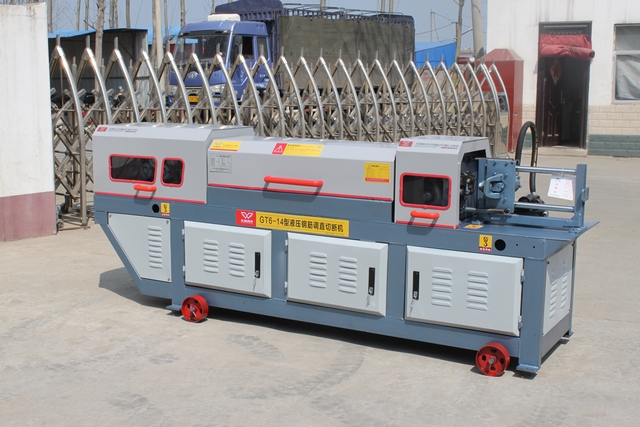

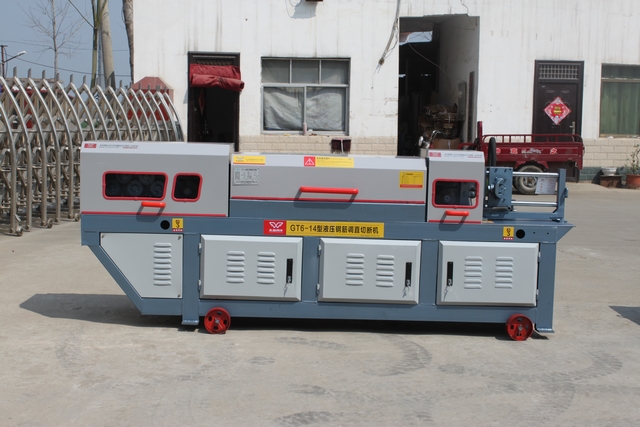

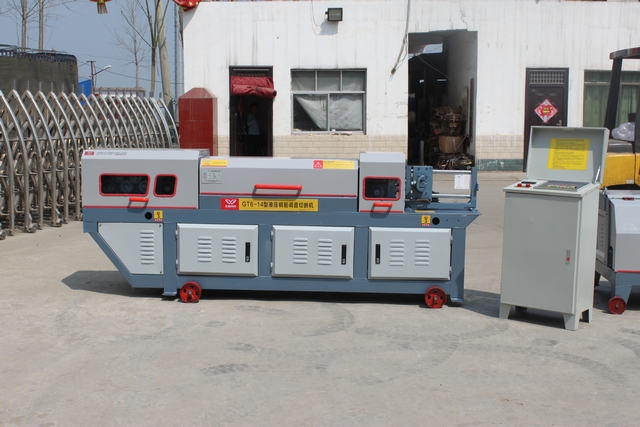

GT6-14A CNC Rebar

Introduction:

Rebar straightener and cutter is highly automatic, with fast traction speed and long working life. Bars straightened by it are with little strength loss, good straightness and no scratch. As an experience manufacturer in China, our CNC straightener for 14mm steel wire shares large national and international markets, due to its numerous features, such as easy operation, simple adjustment, outstanding blanking and high performance, etc.

Application:

Rebar straightener and cutter is designed to straighten and cut the architectural III cold rolling rebar, cold-rolled plain bar and hot rolling coiled round bar.

Features:

1. It adopts one-way hydraulic system, which ensures stable operation and low noise.
2. CNC straightener for 14mm steel wire is with high efficiency and fast straightening speed, due to its high power motor.
3. It has accurate cutting length and little material loss, and cutting error is reduced from ±2cm into ±1cm.

Specification:

Capacity	Steel Rod	Φ6-14mm
	Rebar	Φ6-12mm
Cutting Length		400mm to up
Cutting Error		±0.5cm
Speed		48-55m/min
Straighten & Traction Motor		11KW
Pump Motor		5.5KW
Voltage		380V/3phase
Straightening Degree		±2mm/m
Whole Weight		1200KG
Dimension(L×W×H)(mm)		2940×800×1100
Motor Optional		220V/415V/440V 50HZ/60HZ
