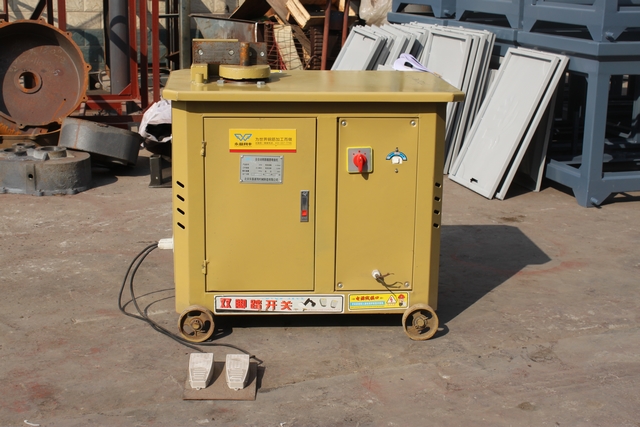

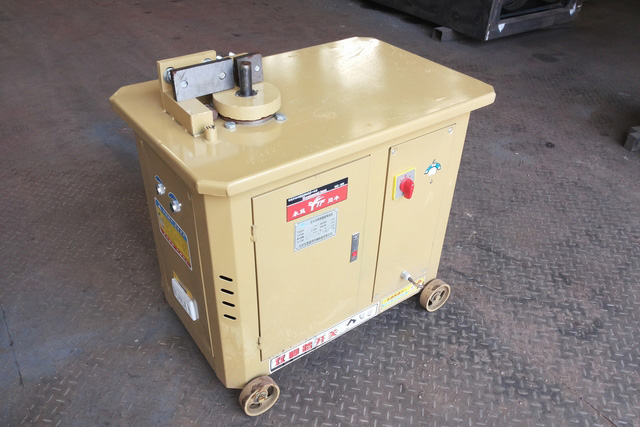

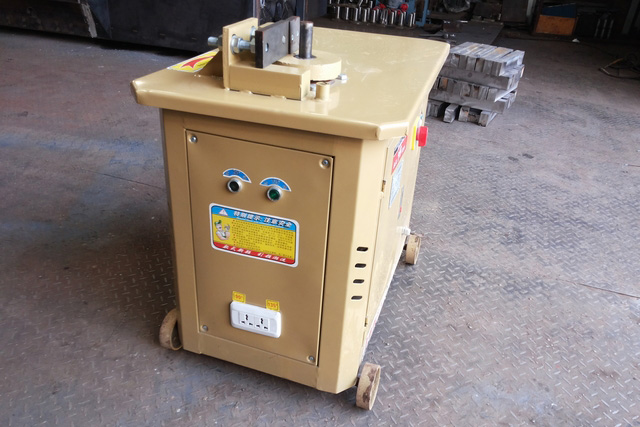

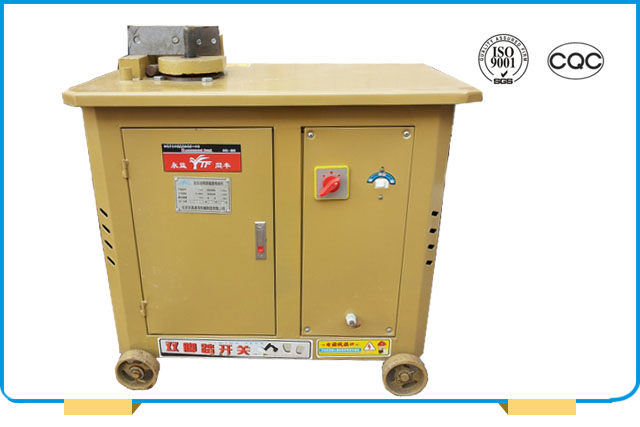

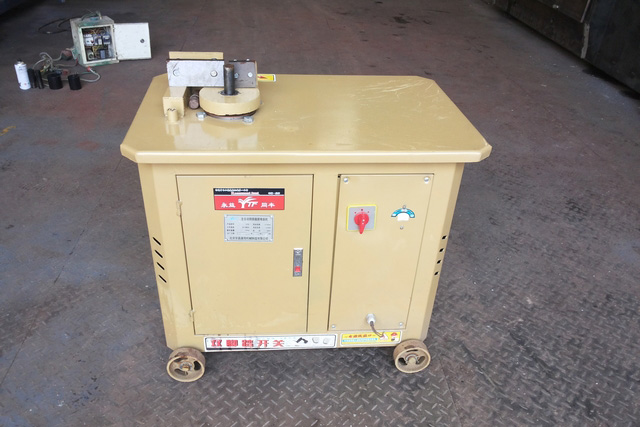

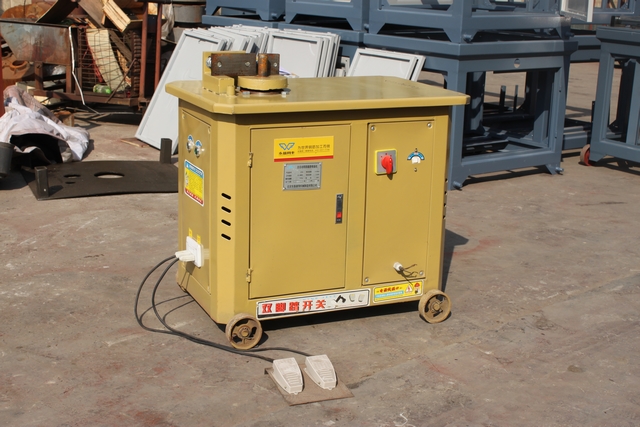

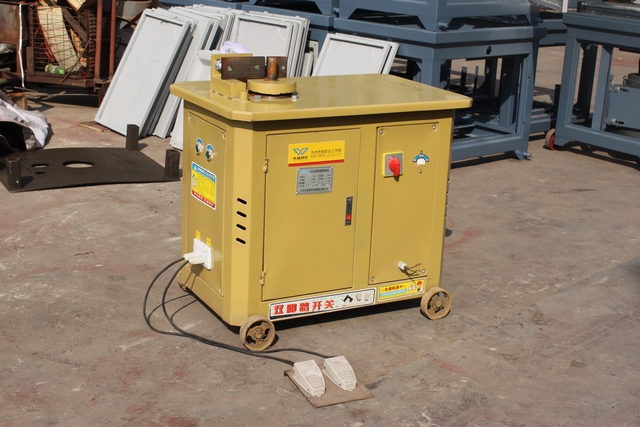

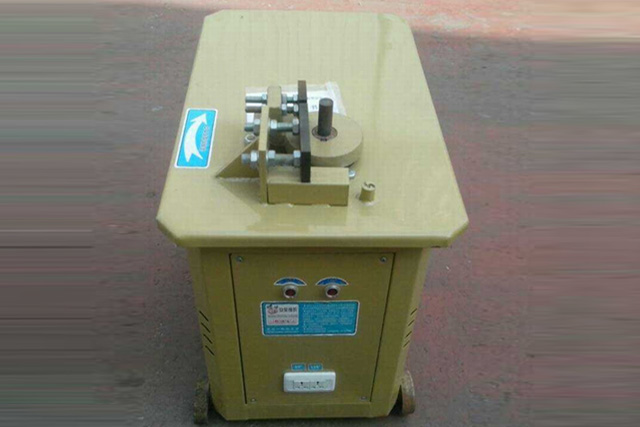

GF20 Small Stirrup Machine

Introduction:

CNC steel bar stirrup bending machine is developed on bender, and can process rebar much better according to specified angle. Operated by two workers, it can bend four to six tons rebar per day, which is three to five times efficient than manual bending. It can be applied in stirrup process in building, bridge and tunnel, etc.

Features:

1. It has 90°and 135°foot switches, which ensures easy adjustment.
2. It is easy to operate and maintain.
3. It is with high performance and competitive price.
4. CNC steel bar stirrup bending machine for diameter 16, 20mm has high rotate speed, 20-25 times per second and 500 stirrups per hour.

Specification:

Item	GW20
capacity	Rod Φ4-20mm
	Rebar Φ4-16mm
spindle speed	20-25rpm
power	1.5-2.2KW
motor	380V/50HZ/3phase
foot pedal	dual foot pedal
angle	90, 135
power supply	electricity
control mode	automatic
Application	carbon steel, hot/cold rolled steel
weight	130kg
dimension	1300×550×720

Relate equipment/accessories:

CNC steel bar stirrup bending machine is composed of electric motor, gearbox, electric appliance and rack, etc.
