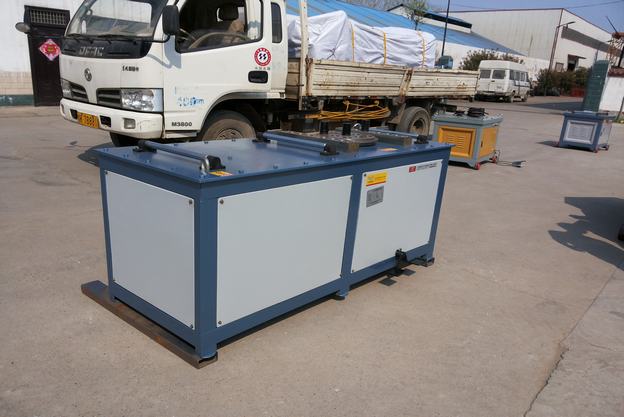

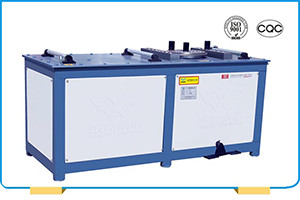

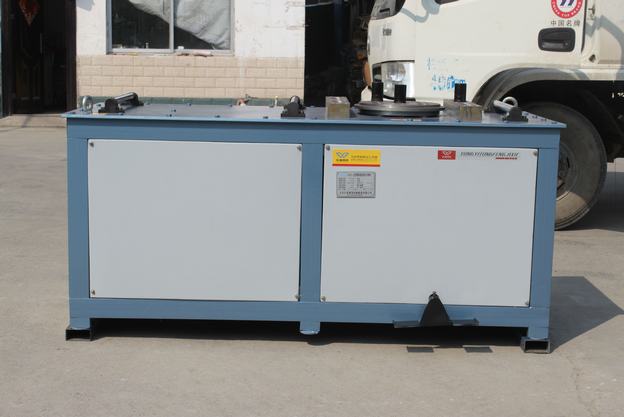

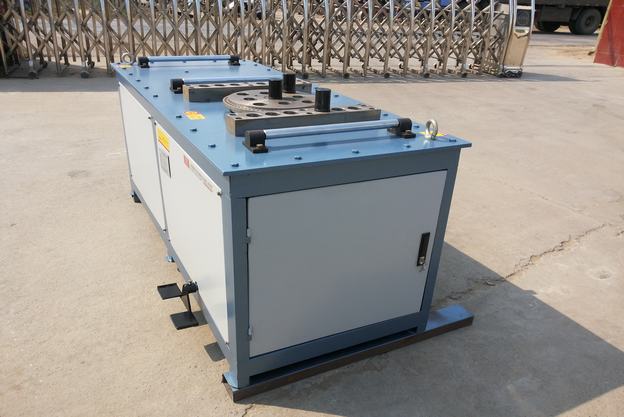

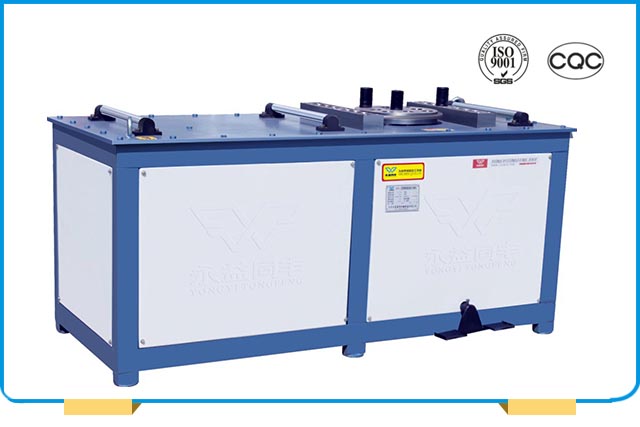

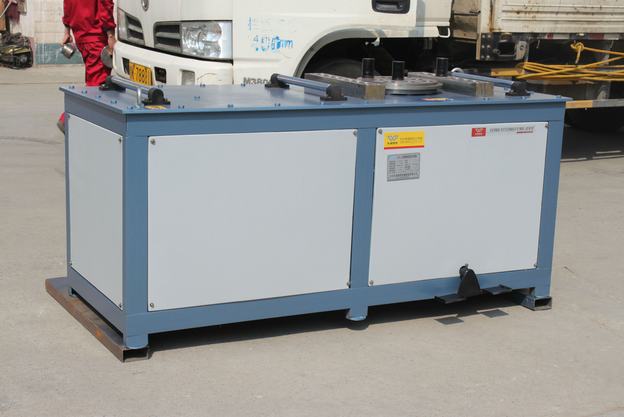

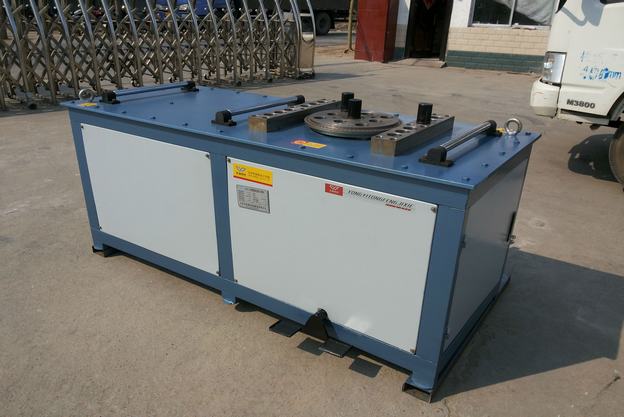

CYW50A Diesel Powered Bending Machine

Introduction:

CYW50A 50mm diesel motor rebar bender machine is our self-developed rebar bending machine driven by diesel engine. It is applied to bend plain carbon steel, hot rolled round steel, deformed steel, flat steel, square steel and angle steel. As an experienced rebar bending machine manufacturer, our products are widely used in areas with no access to electricity, construction site, rebar processing factories, road and bridge building sites.

Advantages:

1. It can be used in areas with no access to electricity.
2. 50mm Diesel motor rebar bender machine uses diesel as power, drive the whole machine to work.
3. It is with eccentric bushing and extra hard auxiliaries and adjustable board, which ensures long working life.

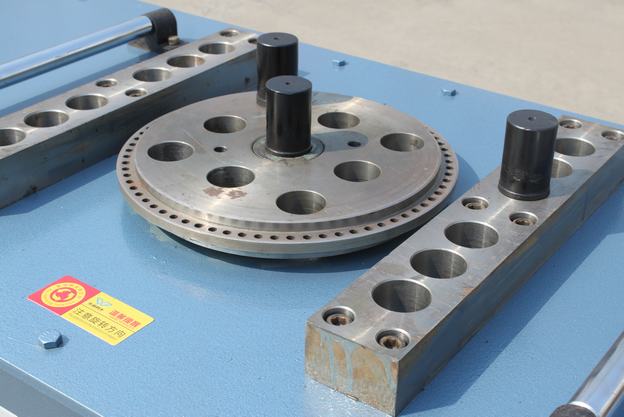

4. Working dish, insert seat and plug wheel are made of 45#, which are extra thick and treated with high frequency.

Specifications of rebar bending machine:

Item		CYW50A
Bending Capacity	Ub Round Bar	≤450MPa Φ6-Φ50mm
	II Deformed Bar	Φ6-Φ40mm
Diesel Power		7kw /12h 2300r/min
		7.7kw /h 2300r/min
Working Dish Size		Φ400mm
Spindle Speed		7r/min
Weight		900kg
Dimension(L×W×H)(mm)		1940×800×900
