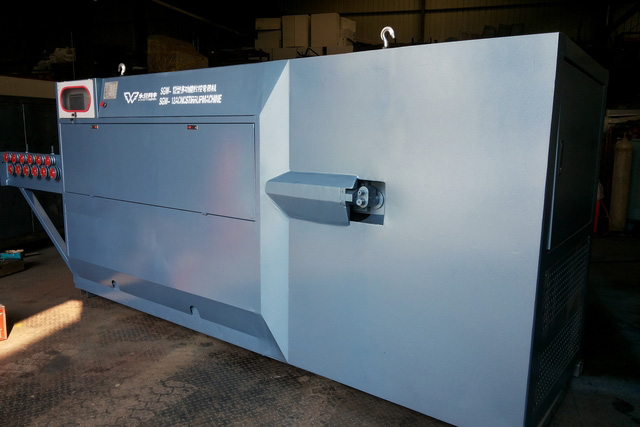

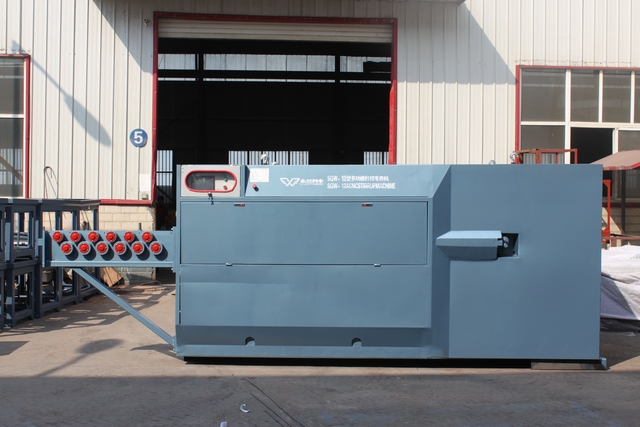

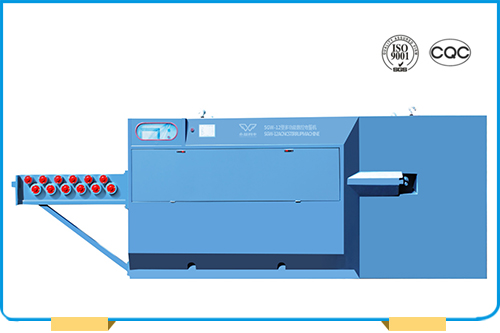

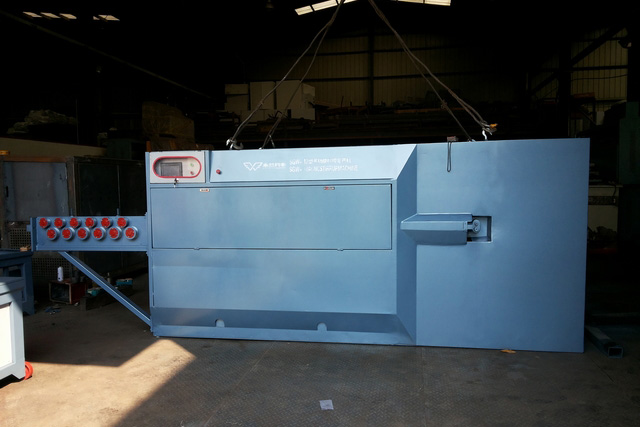

2D Stirrup Machine

Introduction:

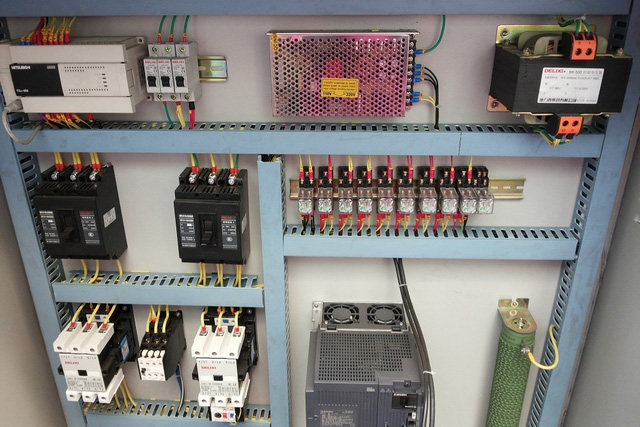

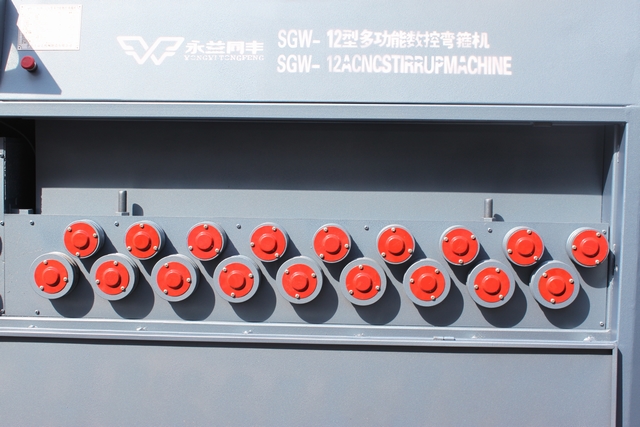

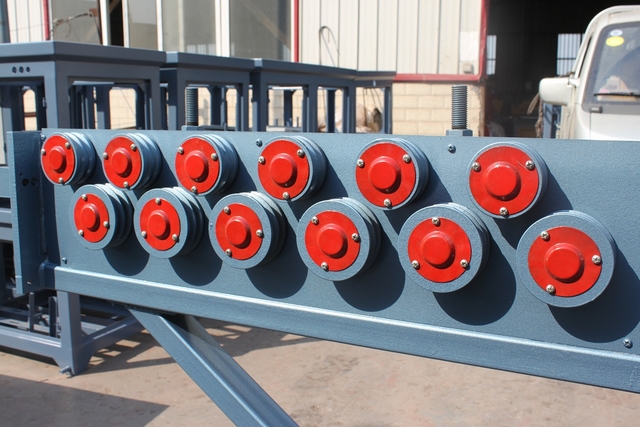

2D stirrup bending machine, controlled by CNC, is adopted to measure, straighten, bend and cut hot rolled rebar, hot rolled ribbed steel bar, plain round bar and cold rolled rebar quickly and automatically. As a recognized CNC bending and cutting machine supplier, our product is composed of traction part, straightening part, shearing part, bending part and electric control part. As a renowned factory in China, our 2D rebar stirrup machine is with high performance and competitive price, and wins customers’ trust and praise.

Advantages:

1.2D stirrup bending machine has stable work performance and competitive price.
2. Combining straightening, bending and cutting in one, which ensures various shapes in accordance with your requirements.
3.Two-way hydraulic line is changed into one-way, which is simpler and with less tolerance.
4.CNC stirrup bender has high feeding speed and cutting efficiency.
5.It can bend two rebar one time, with high performance and easy adjustment.

Maintenance:

1. Avoid damage caused by rain, sunshine, sand and dust.
2. Check the traction part and oil tanks to refuel or change lubricant.
3. Clean the CNC bending and cutting machine before and after operation. Take away the oxidized steel and sundries.

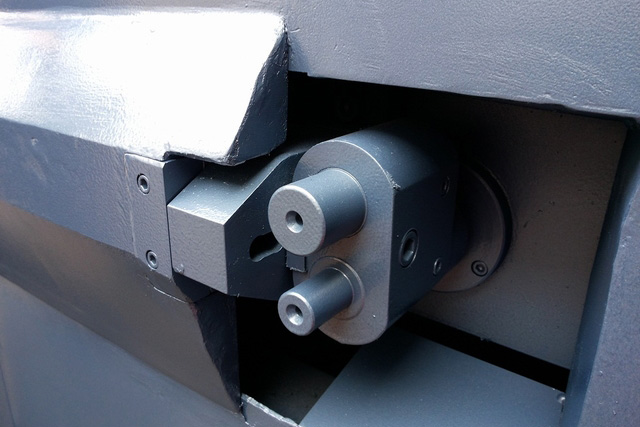

4. Check the tightness of blades and bending part, as well as whether the blades and initial point are reset or not.

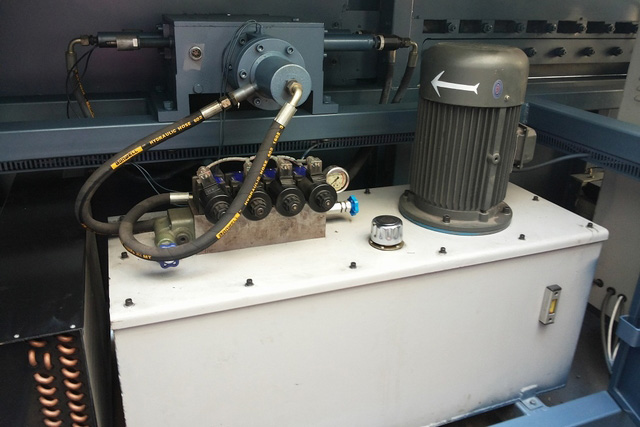

5. Monthly maintenance. Check whether there is oil leakage or screw loose in the mechanic part, the oil level in hydraulic oil tank and the tightness of circuit connection.

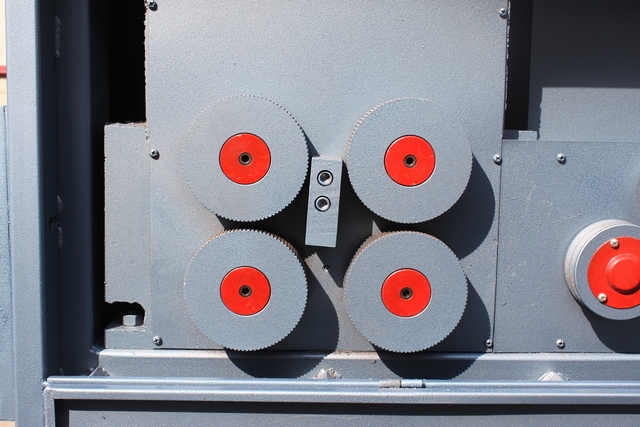

6. Lubricate the traction wheels every 3 month.

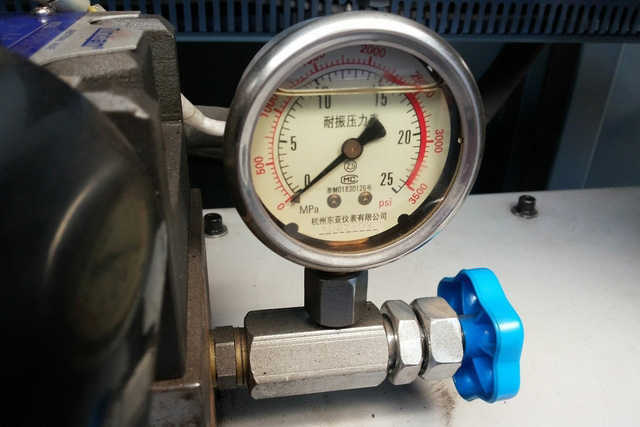

7. Keep pressure between 8Mpa to 10Mpa.
8. For long term stock, cut off power supply before maintenance. Set all section in out-of-service state. Paint anti-rust oil on places easy to rust. Cover 2D stirrup bending machine with waterproof bag. Put the key in a safe place.

Specification of 2D rebar stirrup machine:

Single Steel Processing Capacity	Ø4-12mm
Parallel Steel Lines Processing Capacity	Ø4-8mm
Stirrup Length Range Min.-Max.	100-1000mm
Bending Angle	±180º
Max Traction Speed	75-100m/min
Maximum Bending Speed	1100º/S
Length Precision	±1mm
Angle Precision	±1º
Total Power	16.5KW-3phase
Average Power Consumption	10degrees/h
Yield(average)	8 ton/10h(one worker)
Pressure of Hydraulic Pump Station	0.8-1.0 MPa
Operation Temperature Condition	-5-50°C
Weight	2200kg
Dimension (L × W × H)(mm)	3700×1100×1700
