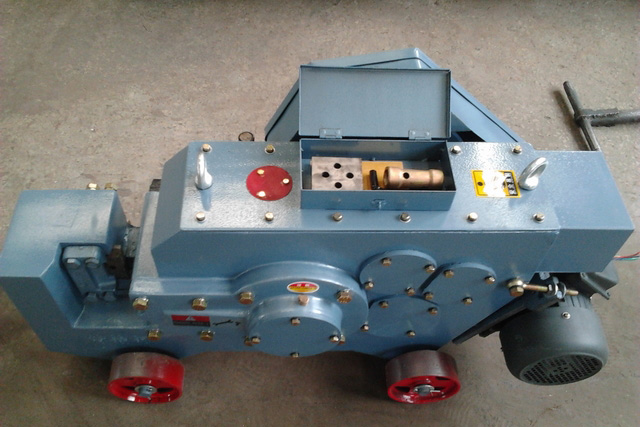

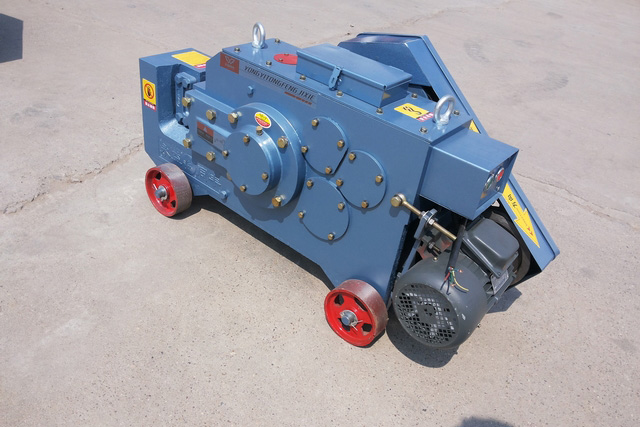

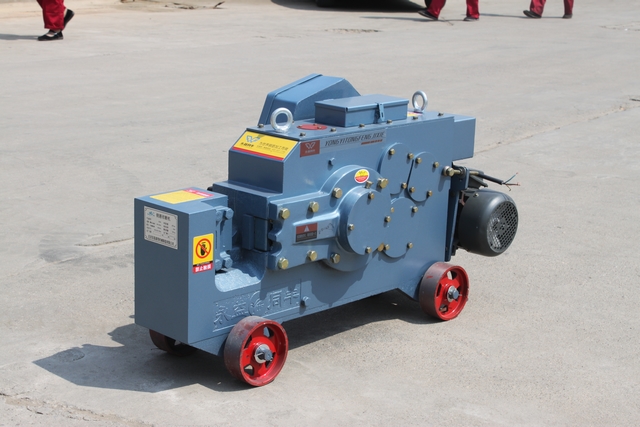

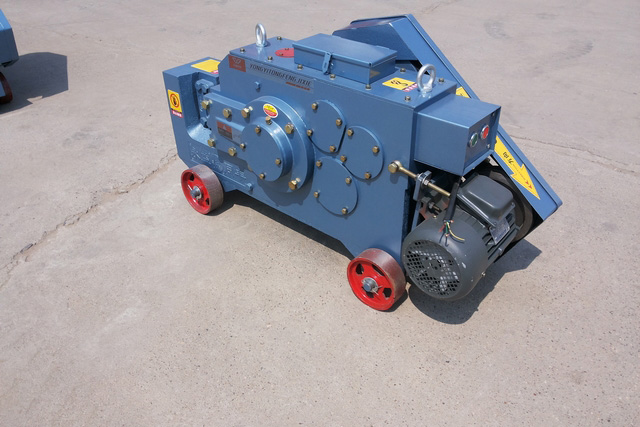

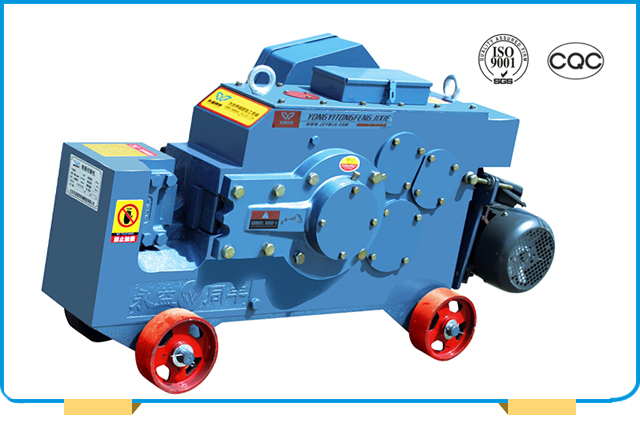

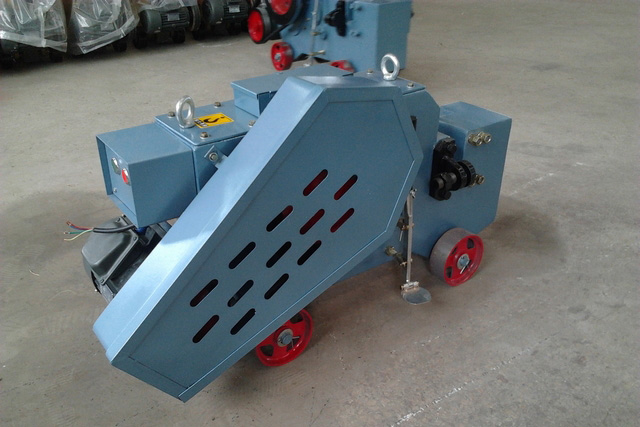

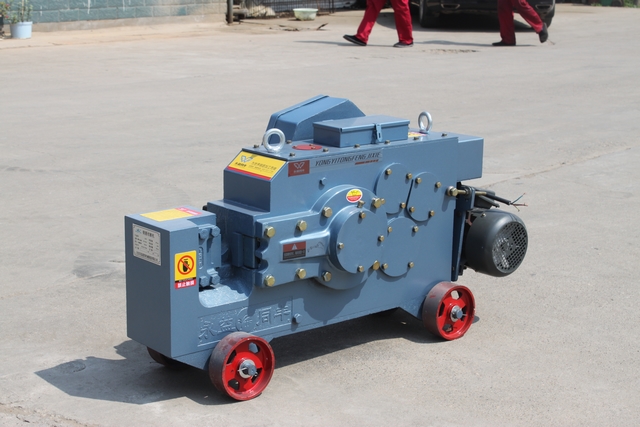

GQ40A Rebar Cutter

Introduction:

Rebar cutting machine is used to cut plain carbon steel, hot rolled round steel, deformed steel bar, flat steel, square steel and angle steel. 3KW/380V reinforced steel bar cutter can be applied in construction site, steel bar processing factories, road and bridges, etc. With high frequency and gear hobbing and other special process, it has fast cutting speed and high efficiency.

Features:

1. Rebar cutting machine is with compact structure and high working performance.
2. With rolling type truckles, it is easy to move.
3. It has outstanding lubricating property, and adopts closed structure, which ensures it can be used for over three months continually when getting enough fuel (8-12kg).
4. With the development of lubrication, 3KW/380V reinforced steel bar cutter uses rolling bearings which have less resistance. Compared with similar cutting machine, it is with less energy consumption.
5. It is with long working life as it uses high rigidity tool apron and connecting rod.
6. It is fully made of steel, which is durable.

Why Choose Rebar Cutter from FengYiDa Machinery?

Specification of rebar cutting machine:

Item		GQ40A
Cutting Capacity	Steel Rod	≤Φ40mm
	II Rebar	≤Φ32mm
	Max Flat Steel	70×15mm
	Max Square Steel	32×32mm
	Max Angle Steel	50×50mm
Cutting Frequency		32times/min
Motor Power		3KW-3phase
Voltage		380V
Weight		395kg
Dimension(L×W×H)(mm)		1250×500×730
Optional Motor		220V/415V/440V 50HZ/60HZ

Relate equipments/accessaries

3KW/380V reinforced steel bar cutter is made of driving structure, clutch devices, blade and truckle, etc.

Recommended accessories

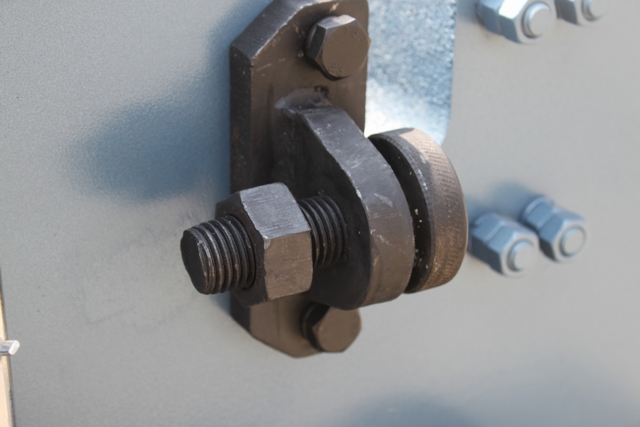

1. Hand clutch

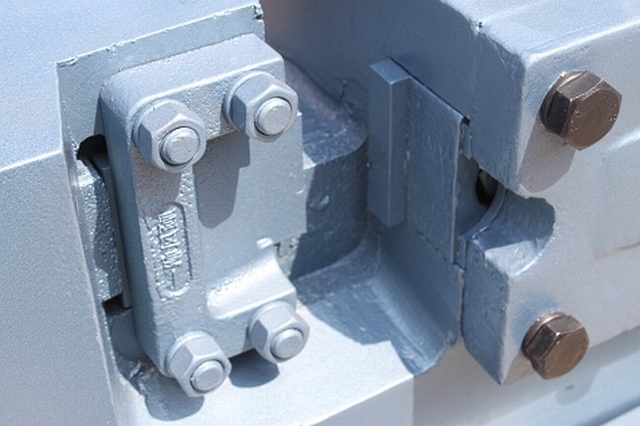

2. Cutting blades
