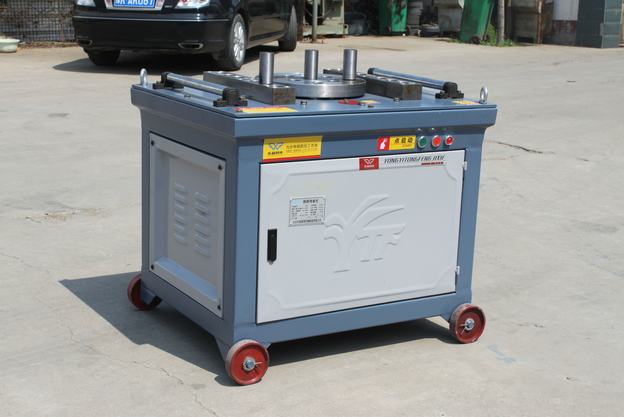

GW60 Manual Bending Machine

Introduction:

Hand rebar bender is applied to bend common plain carbon steel, hot rolling round steel, deformed steel bar, flat steel and square steel in construction sites and rebar processing factories, etc. With a group of professional and devoted engineers and technicians, our manual bar bending machines for diameter 60mm share large markets worldwide, because of their competitive price, long time operation, simple maintenance and low operation cost.

Features:

1. The principle axis adopts cylindrical bearing, with no wearing and no need to refuel.

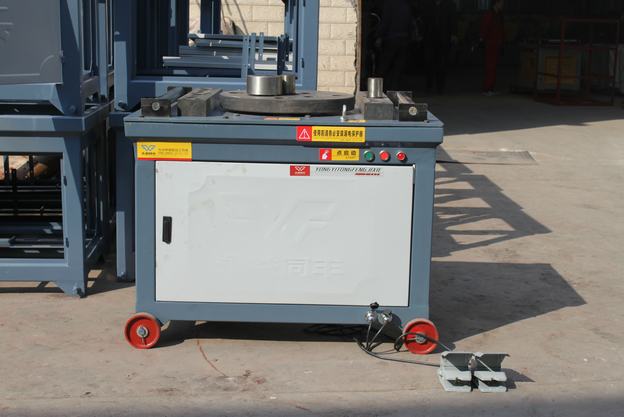

2. Hand rebar bender has two operating mode: manual and foot pedal, which are easy to switch.
3. It has eccentric bushing and super hard accessories, which ensures long working life.
4. It is made of thickened steel plate processed by devices of high precision, which is wear resistant and crush resistant.

Advantages:

1. Manual bar bending machine is easy to bend round rebar with diameter of 60mm and III rebar with diameter of 50mm.
2. Core components, especially the bending auxiliaries, are extra thick and heavy. High frequency treatment ensures long service life.
3. Hand rebar bender has high hardness eccentric and adjustable block board.

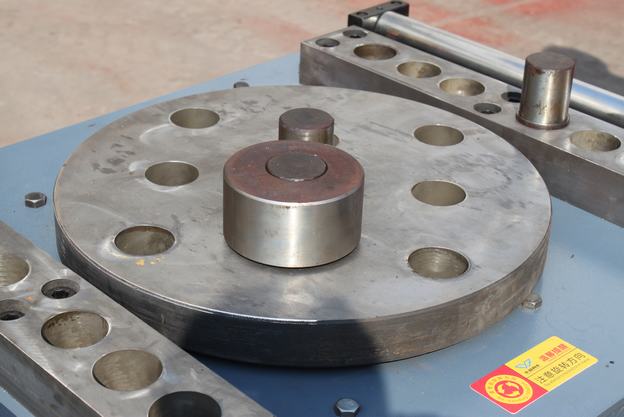

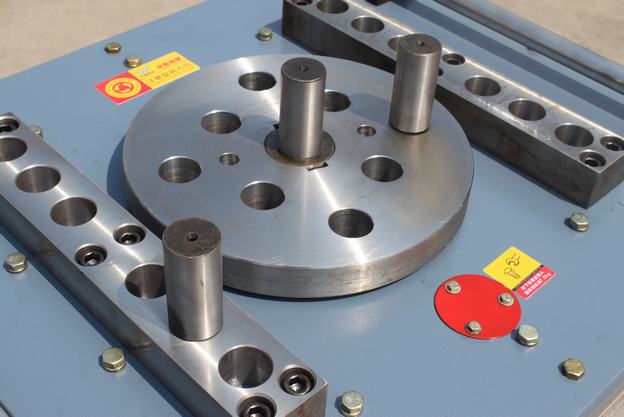

4. Working dish, insert seat and plug wheel are made of 45# steel which is anti-wear, anti-stress and with strong twisting force.

Manual Rebar Bender from FengYiDa Machinery

GW60

GW50

GW40A

GW40B

Specifications:

Item		GW60
Bending Capacity	Rod	Φ25-Φ60 mm
	45# Carbon Steel	Φ25-Φ45 mm
	II Rebar	Φ25-Φ60 mm
	III Rebar	Φ25-Φ60 mm
Working Dish Size		Φ500
Spindle Speed		8rpm
Motor Power		5.5KW-3phase
Voltage		380V
Weight		680kg
Dimension(L×W×H)(mm)		1100×900×900
Motor Optional		220V/415V/440V 50HZ/60HZ

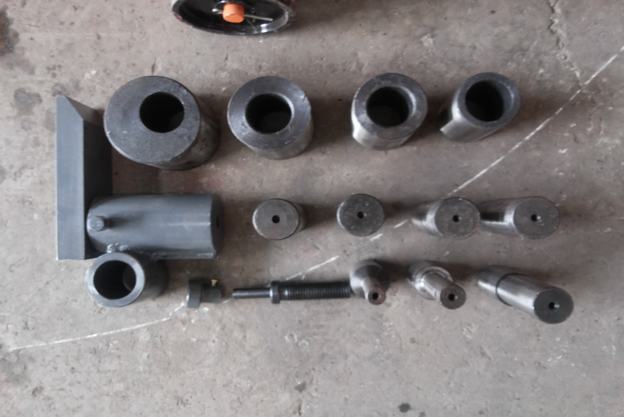

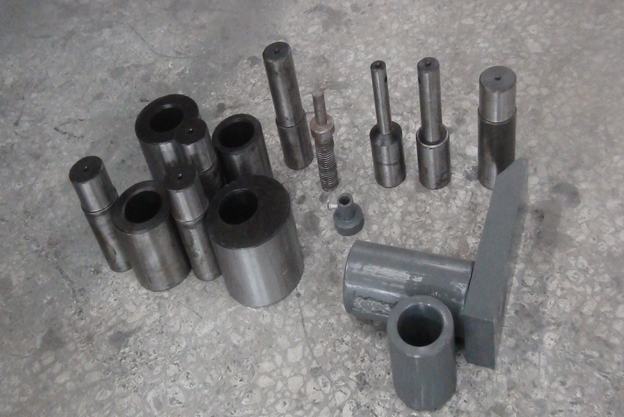

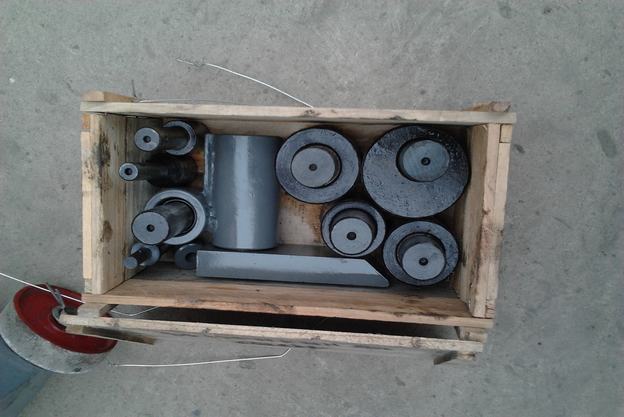

Related equipments/accessories:

Hand rebar bender is composed of machine body, bending part, bending accessories, electric motor, electric appliance, control panel and foot pedal.
