SGT6-12 CNC Rebar

Introduction:

CNC straightening and cutting machine is used to straighten and cut the architectural III cold rolling rebar, cold-rolled plain bar and hot rolling coiled round bar. It is fully automatic, with high performance and competitive price. With a group of professional R&D engineers and technicians, we are devoted to be the leading manufacturer of straightener and cutter in China.

Features:

1.It adopts highly accurate length measurer and hydraulic pressure cutting system, which can provide stable operation, small tolerance and less material loss.
2. CNC straightening and cutting machine for 12mm rebar with speed 42m/min is with small size and light weight, which enables it to move easily.
3.Straightening wheel is made of special steel through high standard heat treatment, which ensures it can straighten more than 300 tons rebar totally.
4. There is no need of material rack and steel is placed on the ground directly.

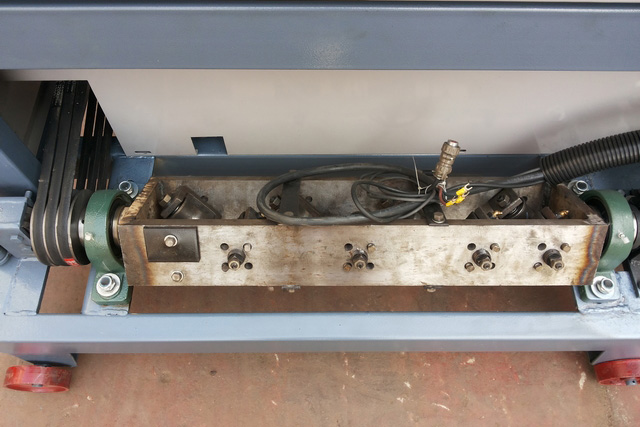

5. Straightening box comes into being by advanced processing technique.
6. CNC straightening and cutting machine is equipped with overload protection device which can avoid electric motor damaging by overload.

Specification:

Capacity	Steel Rod	Φ6-14mm
	Rebar	Φ6-12mm
Cutting Length		300mm to up
Cutting Error		±0.5cm
Speed		32m/min
Straighten & Traction Motor		7.5KW
Voltage		380V/3phase
Straightening Degree		±2mm/m
Whole Weight		750kg
Dimension(L×W×H)(mm)		1650×820×620
Motor Optional		220V/415V/440V 50HZ/60HZ
