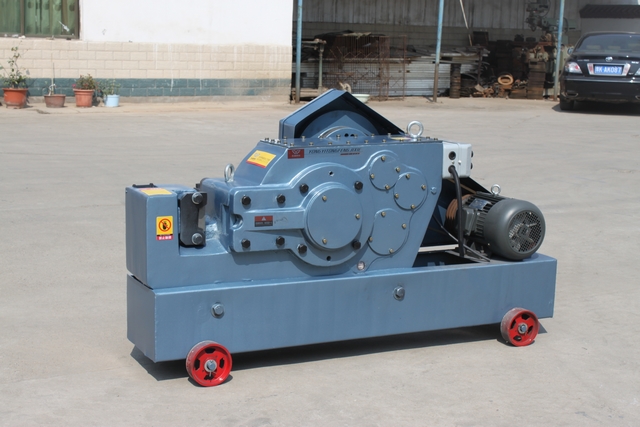

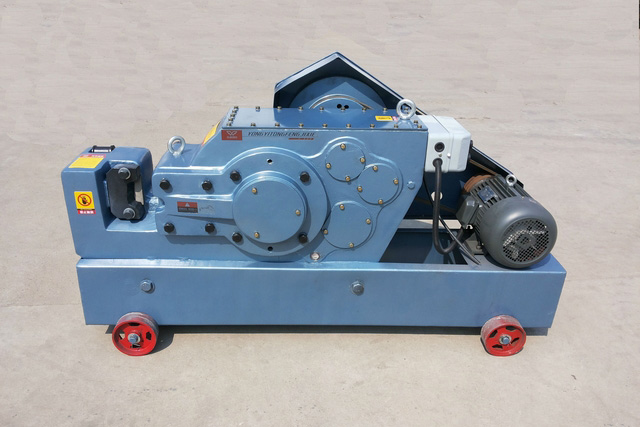

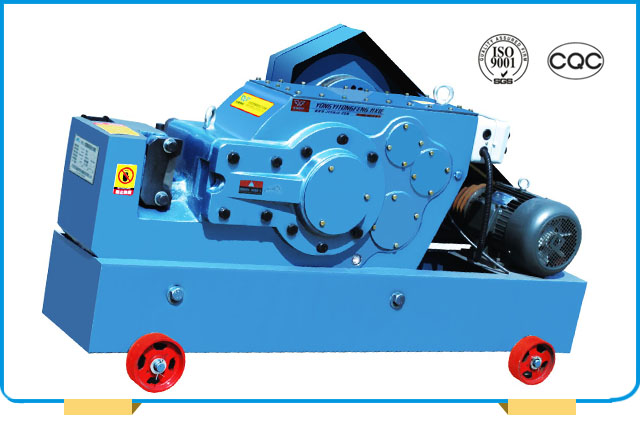

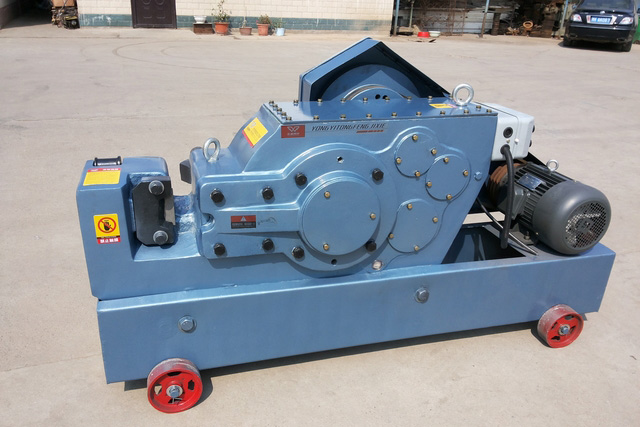

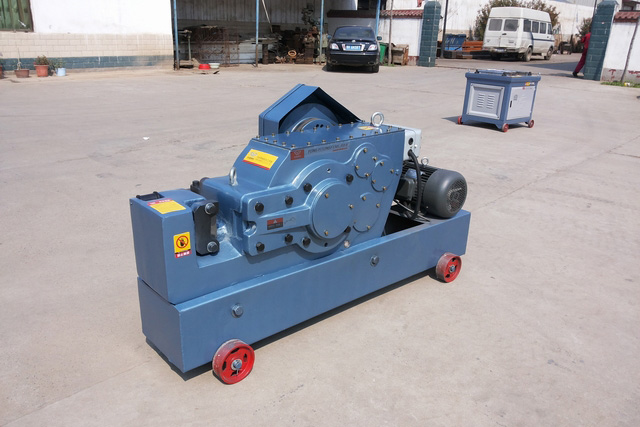

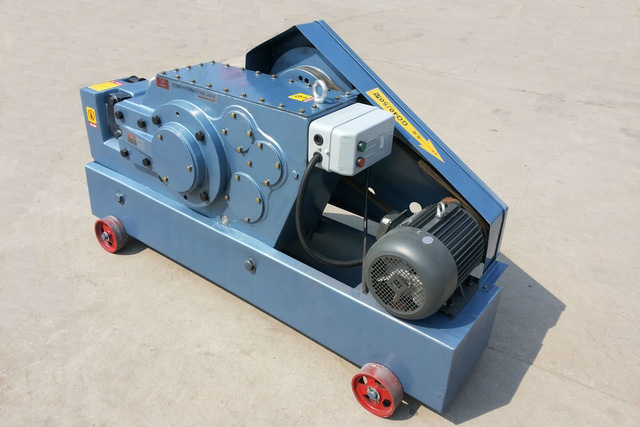

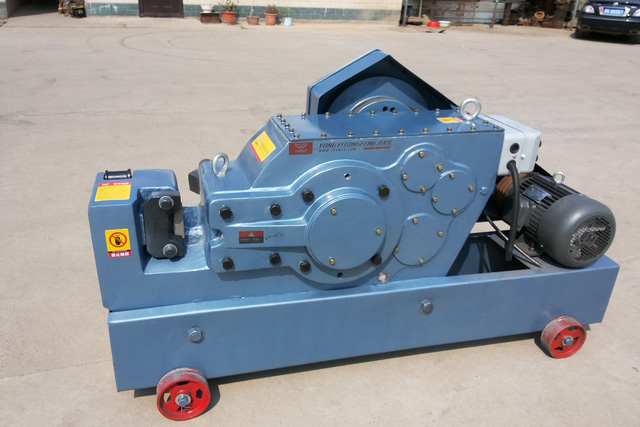

GQ60 Rebar Cutter

Introduction:

Electric rebar cutter is a mechanical tool to cut plain carbon steel, hot rolled round steel, deformed steel bar, flat steel, square steel and angle steel. It converts electric power into kinetic energy through motor. As a professional rebar cutter manufacturer in China, our electric rebar cutter for diameter 60mm has high speed and excellent working efficiency.

Features:

1. It is with compact structure and outstanding quality.
2. Equipped with rolling type truckles, it is easy to move.
3. It has outstanding lubricating property, and can be used for over three months continually when getting enough fuel (8-12kg).
4. Electric rebar cutter is with low energy consumption as it adopts antifriction bearings with less resistance.
5. It uses high rigidity tool apron and connecting rod, which ensures long working life.

Why Choose Rebar Cutter from FengYiDa Machinery?

Specification of electric rebar cutter for diameter 60mm:

Item		GQ60
Cutting Capacity	Steel Rod	≤Φ60mm
	II Rebar	≤Φ50mm
Cutting Frequency		28times/min
Motor Power		5.5KW-3phase
Voltage		380V
Weight		880kg
Dimension(L×W×H)(mm)		1810×560×1000
Motor Optional		220V/415V/440V 50HZ/60HZ

Relate equipment/accessories:

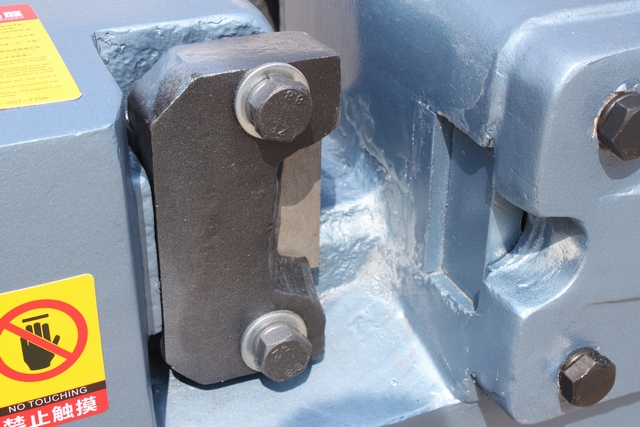

Electric rebar cutter is composed of driving structure, machine body, clutch system, blade and truckle, etc.

Recommended accessories

1. D clutch
2. Ting blades
