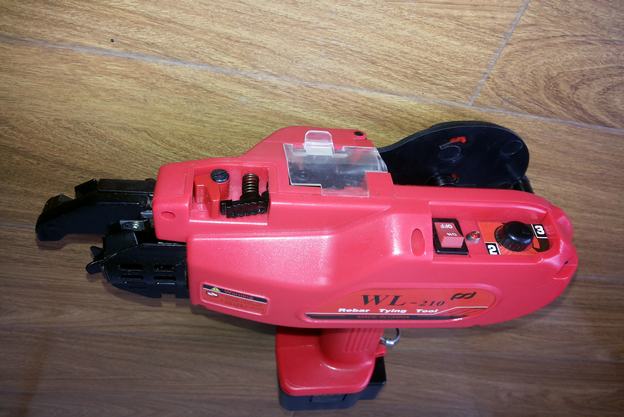

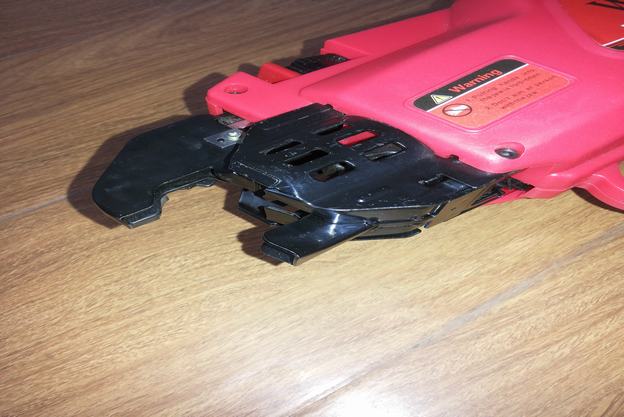

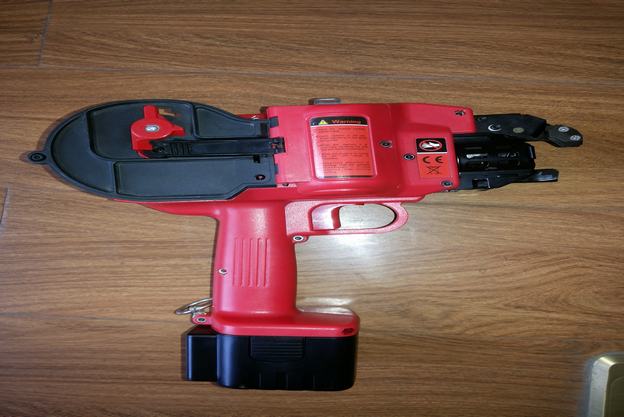

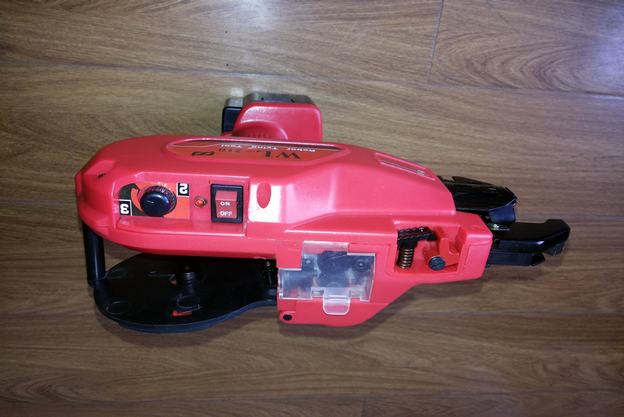

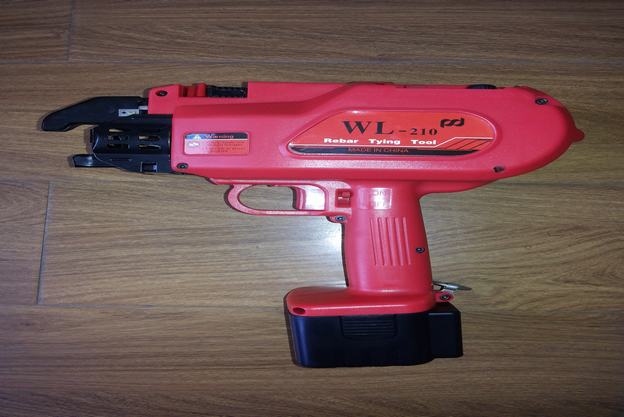

WL-210 Rebar Tying Machine

Introduction:

Rebar tying tool is designed to tie up rebar automatically. It can be widely applied in concrete constructions, such as house building, bridge building, etc. The maximum tying diameter of WL-400 is 21 mm. As a recognized rebar tier factory, our 21mm portable rebar tier is with high performance and competitive price.

Feature:

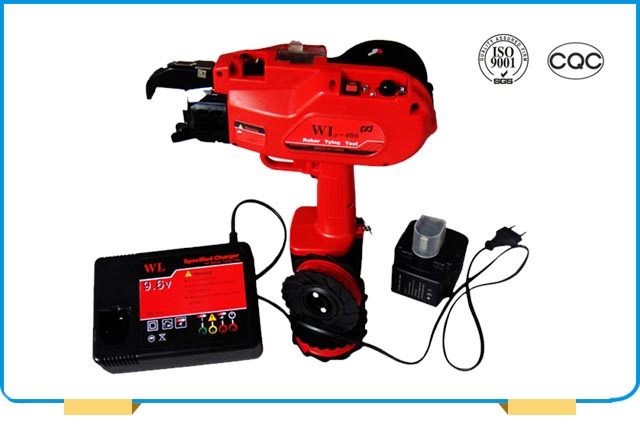

Tying diameter is 21mm. Rebar tying tool can complete 1200 ties continually. It is equipped with two 3000mA/h, 9.6VNI-MH batteries, specification, operation instruction, nipper pliers, Allen wrench, one charger and four wire coils (every wire coil is 100 meters and can complete 200 ties)

Advantages:

1. Our sheet metal parts are press forming and adopt "electrophoresis”.
2. Outer casing of 21mm portable rebar tier uses PC+ reinforced nylon, and material is imported from Japan.
3. 80% of the controlling components are from foreign countries.
4. It remarkably reduces the labor intensity and improves tying efficiency.

Specification of rebar tying tool:

Item	Specifics
Product Model	WL-210
Maximal tying dia.	21mm
Wire length of a tie	390-530mm
Motor voltage	9.6V
Tying intensity	0.5kg
Wire diameter	0.8mm
Battery type	Ni-MH
Charger voltage	110-240V
Machine size	277x100x270mm
Package size	418×408×162mm
Net weight	2.1kg
Gross weight	7.5kg

Relate equipments/accessories

Battery, charger and wire coil.
