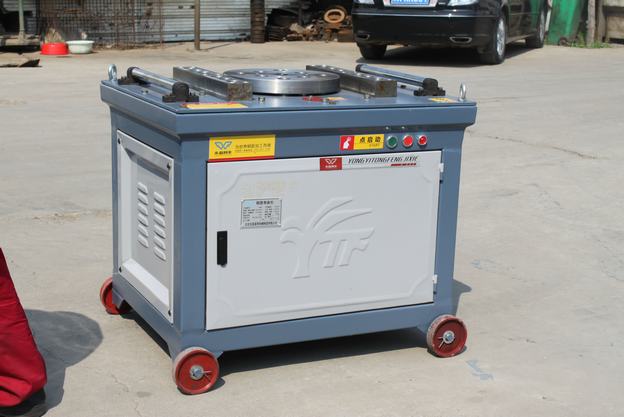

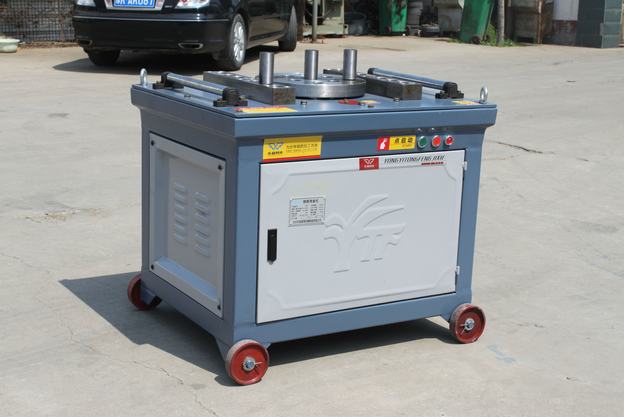

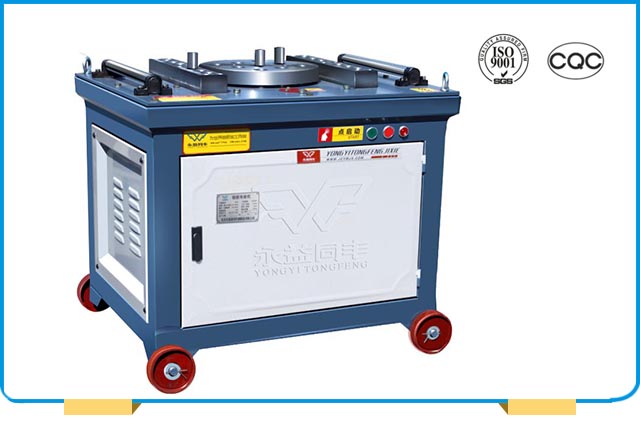

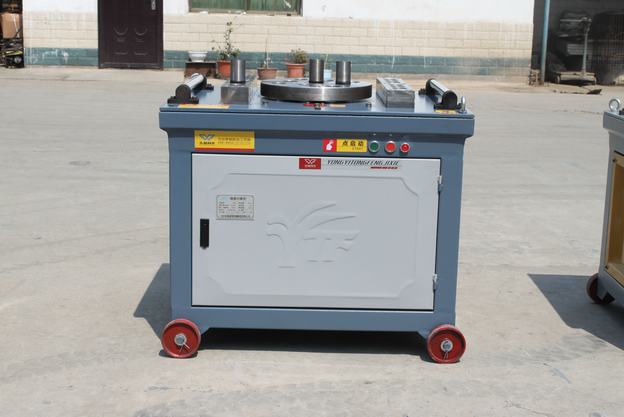

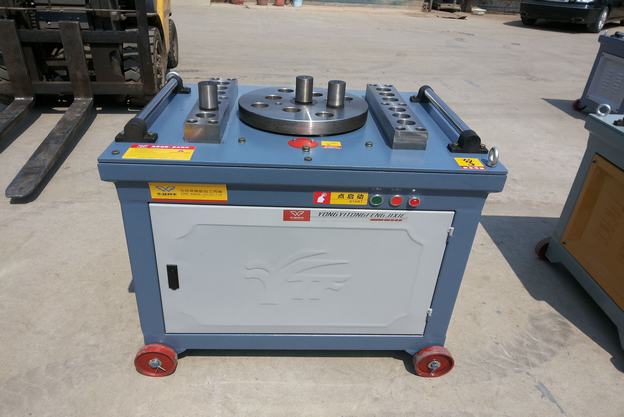

GW40A Manual Bending Machine

Introduction:

Hand rebar bender is applied to bend common plain carbon steel, hot rolling round steel, deformed steel bar, flat steel and square steel in construction sites and rebar processing factories, etc. With a group of professional and devoted engineers and technicians, our manual bar bending machines for diameter 40mm share large markets worldwide, because of their competitive price, long time operation, simple maintenance and low operation cost.

Features:

1. The principle axis adopts cylindrical bearing, with no wearing and no need to refuel.
2. Hand rebar bender has two operating mode: manual and foot pedal, which are easy to switch.
3. It has eccentric bushing and super hard accessories, which ensures long working life.
4. It is one turbine type bending machine.
5. It is made of thickened steel plate processed by devices of high precision, which is wear resistant and crush resistant.

Advantages:

1.Manual bar bending machine adopts full closed noise reduction gearbox, which ensures super low noise during operation.
2. Core components, especially the bending auxiliaries, are extra thick and heavy. High frequency treatment ensures long service life.
3. Hand rebar bender has high hardness eccentric and adjustable block board.

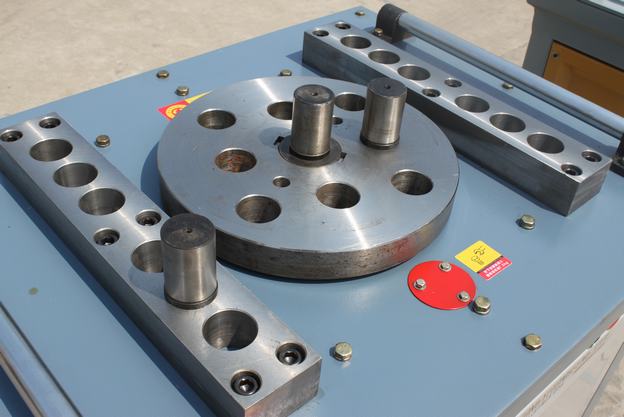

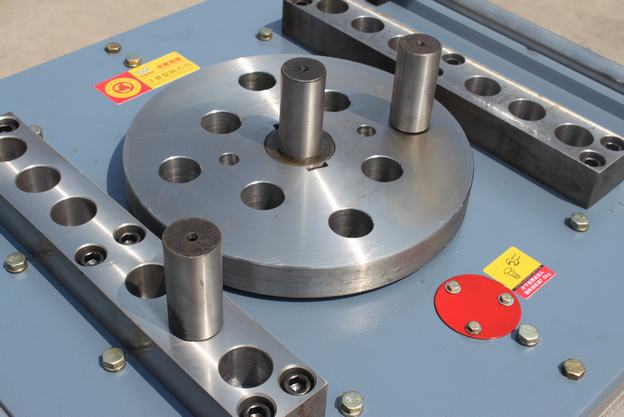

4. Working dish, insert seat and plug wheel are made of 45# steel which is anti-wear, anti-stress and with strong twisting force.

Specifications:

Item		GW40A
Bending Capacity	II Rebar	≤Φ40 mm
	III Rebar	≤Φ36 mm
Working Dish Size		Φ350
Spindle Speed		High 9.63rpm Low 4.68rpm
Motor Power		3KW-3phase
Voltage		380V
Weight		365kg
Dimension(L×W×H)(mm)		930×730×710
Motor optional		220V/415V/440V 50HZ/60HZ

Related equipments/accessories:

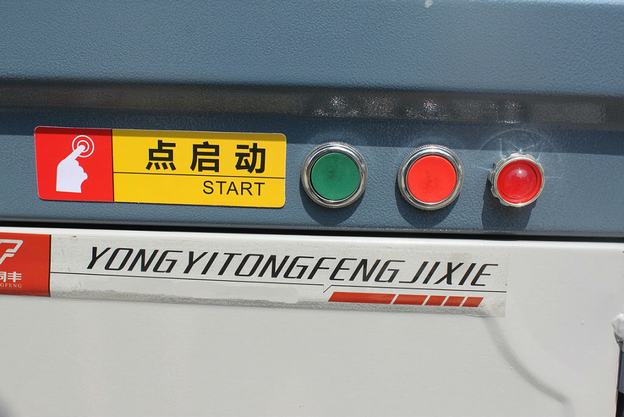

Hand rebar bender is composed of machine body, bending part, bending accessories, electric motor, electric appliance, control panel and foot pedal.
