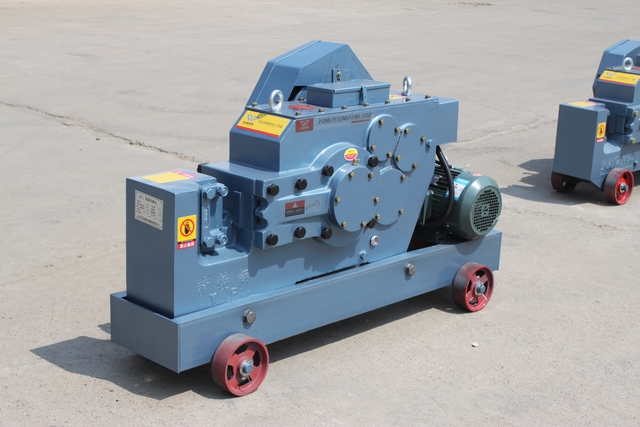

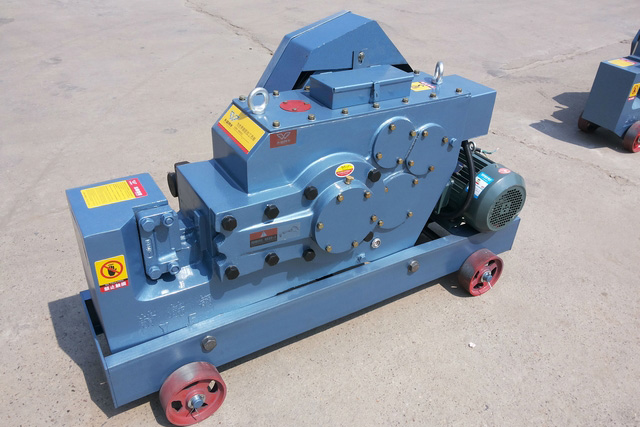

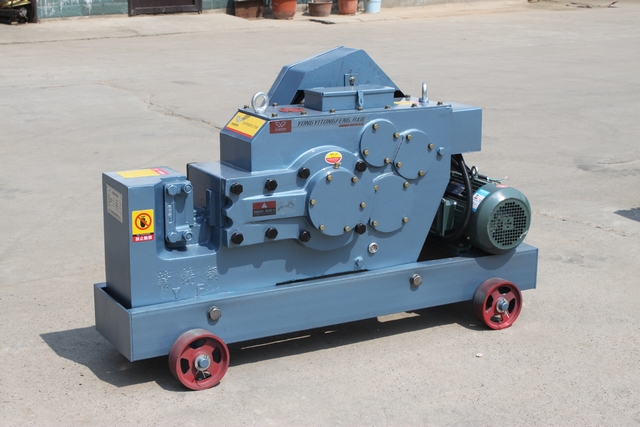

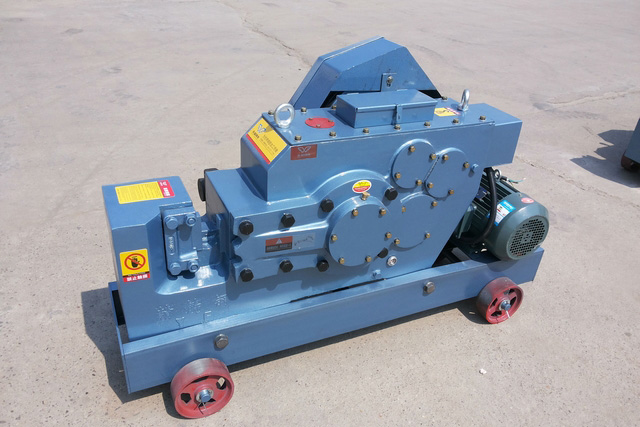

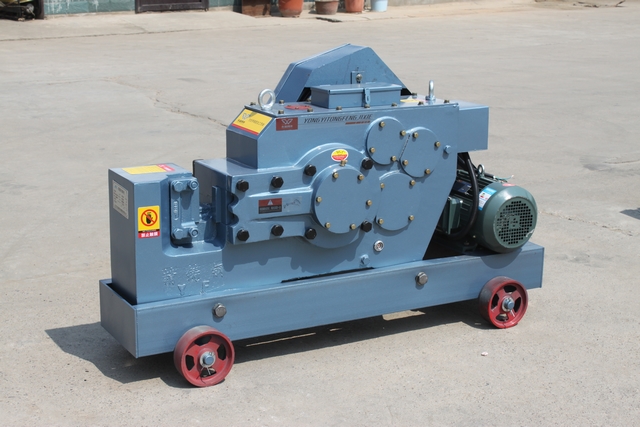

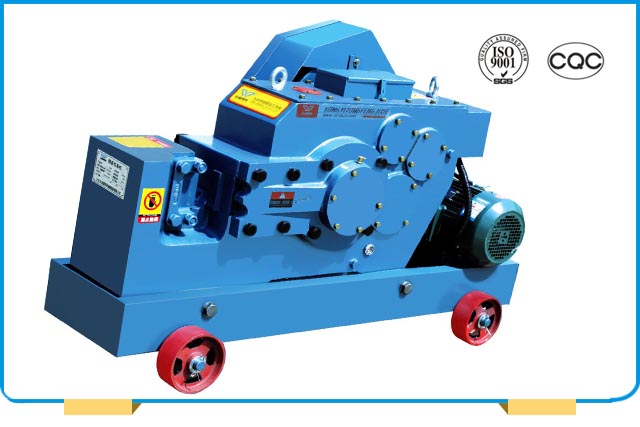

GQ50 Rebar Cutter

Introduction:

Reinforcing steel bar cutting machine cuts rebar by converting electric power into kinetic energy through motor. It is durable and of high precision. As a professional rebar cutter supplier, our products can be applied in construction site, steel bar processing factories, road and bridges, etc.

Features:

1.It is with compact structure and good quality.
2. t is easy to move with rolling type truckles.
3.It has outstanding lubricating property, and can be used for over three months continually when getting enough fuel (8-12kg).
4.Reinforcing steel bar cutting machine for diameter 50mm is with low energy consumption as it adopts antifriction bearings with less resistance.
5.It has long working life as it uses high rigidity tool apron and connecting rod.

Why Choose our Rebar Cutter?

Specifications of reinforcing steel bar cutting machine:

Item		GQ50
Cutting Capacity	Steel Rod	≤Φ50mm
	II Rebar	≤Φ40mm
	Max Flat Steel	80×18mm
	Max Square Steel	40×40mm
	Max Angle Steel	63×63mm
Cutting Frequency		28times/min
Motor Power		4KW-3phase
Voltage		380V
Weight		540kg
Dimension(L×W×H)(mm)		1400×530×850
Motor Optional		220V/415V/440V 50HZ/60HZ

Relate equipments/accessories:

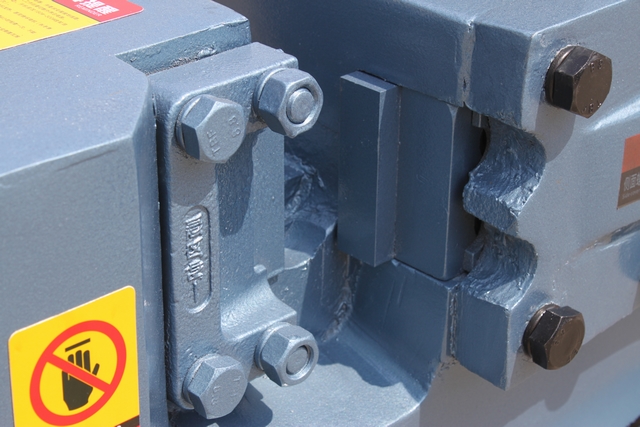

Reinforcing steel bar cutting machine is composed of driving structure, body, clutch system, blade and truckle, etc.
