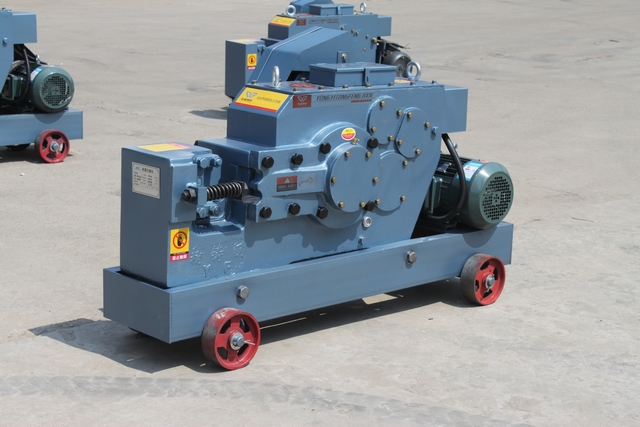

Rod Cutting Machine

Introduction:

Rod cutting machine is a specially designed cutter for rod steel. It adopts arc blade, which can well cut the rebar. With special processes, such as high frequency and gear hobbing, etc, it is with high working speed and outstanding efficiency.

Classification of hydraulic electric steel rod cutter:

1. GQ52
2. GQ42

Application:

Rod cutting machine can be used to cut plain carbon steel, hot rolled round steel, deformed steel bar, flat steel, square steel and angle steel in various sites, such as construction site, rebar processing factories, roads and bridges building sites, etc.

Why Choose Rebar Cutter from FengYiDa Machinery?

1. Material for Rod Cutting Machine:

Gear	ductile iron
Axis	45# Carbon structural steel
Gear shaft	45# Carbon structural steel
Body	ductile iron
Connecting rod	STRUCTURAL STEEL
Crank shaft	40Cr
Blade	T10
Blade seat	Cast iron
Large pulley	extra heavy
Screw	≥8.8 degree screw

2. Technical advantage: We cooperate with leading Italian company and bring in advanced Italian technology. We adopt top quality material, and conduct high frequency and gear hobbing processes.
3. Experience advantage: We have been engaged in hydraulic electric steel rod cutter manufacturing for 14 years.

Operating requirements and notice:

Preparation:

1. Rotate manually to check whether there is clamping stagnation or not.
2. Horizontal interval between two blades shall be between 0.2mm-0.5mm/0.2mm-0.8mm.
3. Check whether bolts are fastened.
4. Check whether the electric machine work well or not, and ensure good insulating property and grounding.
5. Fuel 8-10KG N150-220# gear oil to the new machine.
6. Stop the hydraulic electric steel rod cutter for checking when there are abnormal phenomena during no-load test.
